Android APKjiagu

#压缩级别0-7，Android一般为5(对代码迭代优化的次数)
-optimizationpasses 5

#不使用大小写混合类名
-dontusemixedcaseclassnames

 #混淆时记录日志
-verbose

#不警告org.greenrobot.greendao.database包及其子包里面未应用的应用
-dontwarn org.greenrobot.greendao.database.**
-dontwarn rx.**
-dontwarn org.codehaus.jackson.**
......
#保持jackson包以及其子包的类和类成员不被混淆
-keep class org.codehaus.jackson.** {*;}
#--------重要说明-------
#-keep class 类名 {*;}
#-keepclassmembers class 类名{*;}
#一个*表示保持了该包下的类名不被混淆；
# -keep class org.codehaus.jackson.*
#二个**表示保持该包以及它包含的所有子包下的类名不被混淆
# -keep class org.codehaus.jackson.**
#------------------------
#保持类名、类里面的方法和变量不被混淆
-keep class org.codehaus.jackson.** {*;}
#不混淆类ClassTwoOne的类名以及类里面的public成员和方法
#public 可以换成其他java属性如private、public static 、final等
#还可以使<init>表示构造方法、<methods>表示方法、<fields>表示成员，
#这些前面也可以加public等java属性限定
-keep class com.dev.demo.two.ClassTwoOne {
    public *;
}
#不混淆类名，以及里面的构造函数
-keep class com.dev.demo.ClassOne {
    public <init>();
}
#不混淆类名，以及参数为int 的构造函数
-keep class com.dev.demo.two.ClassTwoTwo {
    public <init>(int);
}
#不混淆类的public修饰的方法，和private修饰的变量
-keepclassmembers class com.dev.demo.two.ClassTwoThree {
    public <methods>;
    private <fields>;
}
#不混淆内部类，需要用$修饰
#不混淆内部类ClassTwoTwoInner以及里面的全部成员
-keep class com.dev.demo.two.ClassTwoTwo$ClassTwoTwoInner{*;}

    @Override
    protected void attachBaseContext(Context base) {
        super.attachBaseContext(base);

        // the getDir method will create a directory in /data/user/0(uid)/packagename/
        // the dx directory holds the file of the source apk
        File relesaeDir = this.getDir("dx", MODE_PRIVATE);
        mSouceAPKLibAbsolutePath = this.getDir("lx", MODE_PRIVATE).getAbsolutePath();
        mSourceAPKReleaseDir = relesaeDir.getAbsolutePath();
        mSourceAPKAbsolutePath = mSourceAPKReleaseDir + "/" + mSouceAPKName;
        // create the source apk
        // if the source apk exist, do nothing, otherwise create the source apk file.
        File sourceApk = new File(mSourceAPKAbsolutePath);
        if (!sourceApk.exists()){
            try{
                sourceApk.createNewFile();
            } catch (Exception e) {
                Log.e(TAG, "failed to create file.");
            }

            // the source apk file is empty, you need to read source apk file from the dex
            // file of the shell apk and save it.
            byte[] shellDexData;
            // get dex of shell apk.
            shellDexData = getShellDexFileFromShellApk();
            // get the source apk and decrypt it.
            // copy the libs in the decrypted apk file to the lib directory.
            getSourceApkFile(shellDexData);
        }

        // Configure dynamic load environment

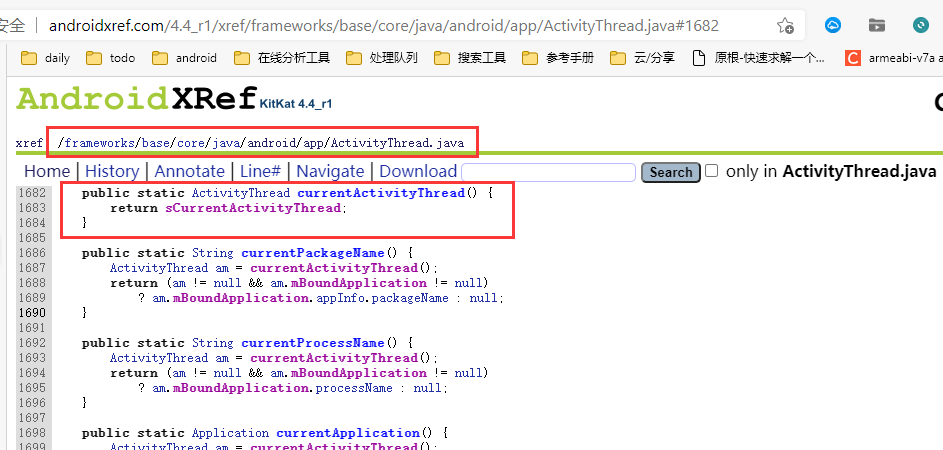

        Object currentActivityThread = RefInvoke.invokeStaticMethod("android.app.ActivityThread", "currentActivityThread", new Class[] {}, new Object[] {});
        String packageName = this.getPackageName();
        ArrayMap mPackages = (ArrayMap) RefInvoke.getFieldOjbect("android.app.ActivityThread", currentActivityThread, "mPackages");
        WeakReference weakReference = (WeakReference) mPackages.get(packageName);

        DexClassLoader newDexClassLoader = new DexClassLoader(mSourceAPKAbsolutePath, mSourceAPKReleaseDir, mSouceAPKLibAbsolutePath, (ClassLoader) RefInvoke.getFieldOjbect("android.app.LoadedApk", weakReference.get(), "mClassLoader"));

        RefInvoke.setFieldOjbect("android.app.LoadedApk", "mClassLoader", weakReference.get(), newDexClassLoader);
    }

    @Override
    public void onCreate() {
        super.onCreate();
        // 源apk启动类
        String srcAppClassName = "";
        // 原apk所在路径
        try
        {
            ApplicationInfo applicationInfo = this.getPackageManager().getApplicationInfo(this.getPackageName(), PackageManager.GET_META_DATA);
            Bundle bundle = applicationInfo.metaData;
            if (bundle != null && bundle.containsKey(SRC_APP_MAIN_ACTIVITY)) {
                srcAppClassName = bundle.getString(SRC_APP_MAIN_ACTIVITY);//className 是配置在xml文件中的。
            }
            else {
                return;
            }
        }
        catch (Exception e)
        {
        }

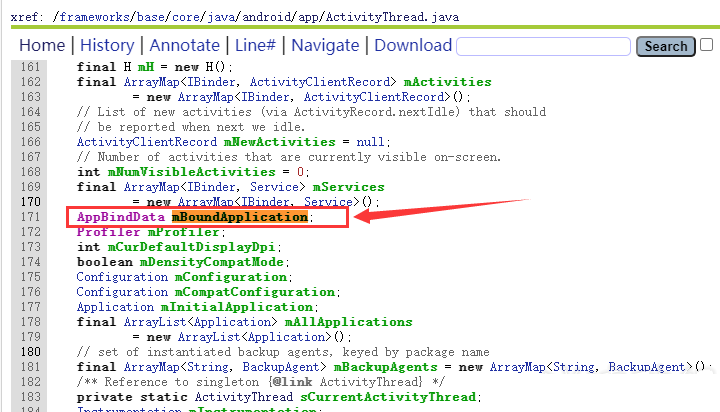

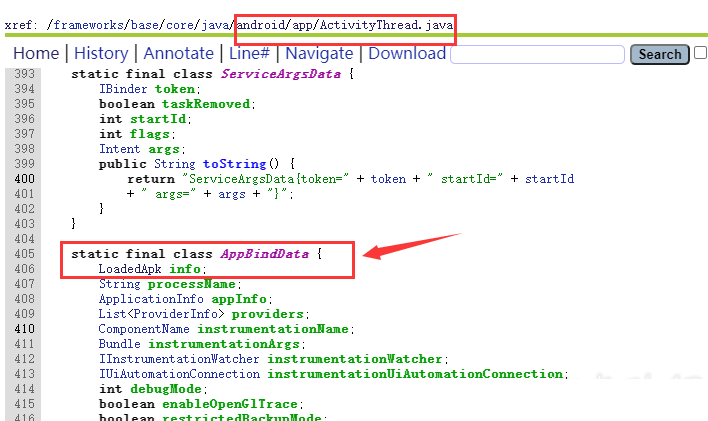

        //获取ActivityThread类下AppBindData类的成员属性 LoadedApk info;
        Object currentActivityThread = RefInvoke.invokeStaticMethod("android.app.ActivityThread", "currentActivityThread", new Class[] {}, new Object[] {});
        Object mBoundApplication = RefInvoke.getFieldOjbect("android.app.ActivityThread", currentActivityThread, "mBoundApplication");
        Object loadedApkInfo = RefInvoke.getFieldOjbect("android.app.ActivityThread$AppBindData", mBoundApplication, "info");

        // 将原来的loadedApkInfo置空
        RefInvoke.setFieldOjbect("android.app.LoadedApk", "mApplication", loadedApkInfo, null);

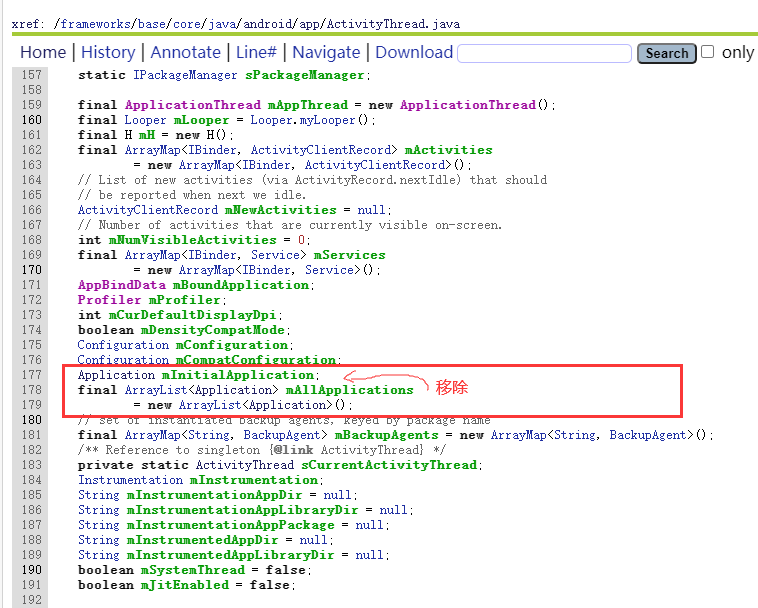

        // 获取壳线程的Application
        Object oldApplication = RefInvoke.getFieldOjbect("android.app.ActivityThread", currentActivityThread, "mInitialApplication");
        ArrayList<Application> mAllApplications = (ArrayList<Application>) RefInvoke.getFieldOjbect("android.app.ActivityThread", currentActivityThread, "mAllApplications");
        mAllApplications.remove(oldApplication);
        // 构造新的Application
        // 1.更新 2处className
        ApplicationInfo appinfo_In_LoadedApk = (ApplicationInfo) RefInvoke.getFieldOjbect("android.app.LoadedApk", loadedApkInfo, "mApplicationInfo");
        ApplicationInfo appinfo_In_AppBindData = (ApplicationInfo) RefInvoke.getFieldOjbect("android.app.ActivityThread$AppBindData", mBoundApplication, "appInfo");
        appinfo_In_LoadedApk.className = srcAppClassName;
        appinfo_In_AppBindData.className = srcAppClassName;
        // 2.注册application

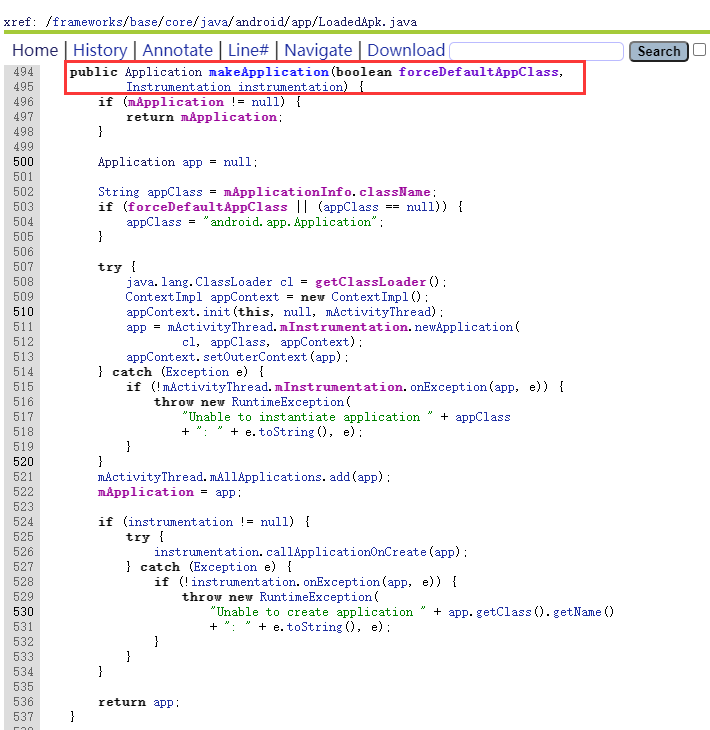

        Application app = (Application) RefInvoke.invokeMethod("android.app.LoadedApk", "makeApplication", loadedApkInfo, new Class[] { boolean.class, Instrumentation.class }, new Object[] { false, null });

        //替换ActivityThread中的mInitialApplication
        RefInvoke.setFieldOjbect("android.app.ActivityThread", "mInitialApplication", currentActivityThread, app);
        //替换之前的 内容提供者为刚刚注册的app
        ArrayMap mProviderMap = (ArrayMap) RefInvoke.getFieldOjbect("android.app.ActivityThread", currentActivityThread, "mProviderMap");

        Iterator it = mProviderMap.values().iterator();
        while (it.hasNext()) {
            Object providerClientRecord = it.next();
            Object localProvider = RefInvoke.getFieldOjbect("android.app.ActivityThread$ProviderClientRecord", providerClientRecord, "mLocalProvider");
            RefInvoke.setFieldOjbect("android.content.ContentProvider", "mContext", localProvider, app);
        }
        app.onCreate();
    }

Object currentActivityThread = RefInvoke.invokeStaticMethod("android.app.ActivityThread", "currentActivityThread", new Class[] {}, new Object[] {});

Object mBoundApplication = RefInvoke.getFieldOjbect("android.app.ActivityThread", currentActivityThread, "mBoundApplication");

Object loadedApkInfo = RefInvoke.getFieldOjbect("android.app.ActivityThread$AppBindData", mBoundApplication, "info");

RefInvoke.setFieldOjbect("android.app.LoadedApk", "mApplication", loadedApkInfo, null);

Object oldApplication = RefInvoke.getFieldOjbect("android.app.ActivityThread", currentActivityThread, "mInitialApplication");
ArrayList<Application> mAllApplications = (ArrayList<Application>) RefInvoke.getFieldOjbect("android.app.ActivityThread", currentActivityThread, "mAllApplications");
mAllApplications.remove(oldApplication);

ApplicationInfo appinfo_In_LoadedApk = (ApplicationInfo) RefInvoke.getFieldOjbect("android.app.LoadedApk", loadedApkInfo, "mApplicationInfo");ApplicationInfo appinfo_In_AppBindData = (ApplicationInfo) RefInvoke.getFieldOjbect("android.app.ActivityThread$AppBindData", mBoundApplication, "appInfo");appinfo_In_LoadedApk.className = srcAppClassName;appinfo_In_AppBindData.className = srcAppClassName;

Application app = (Application) RefInvoke.invokeMethod("android.app.LoadedApk", "makeApplication", loadedApkInfo, new Class[] { boolean.class, Instrumentation.class }, new Object[] { false, null });

RefInvoke.setFieldOjbect("android.app.ActivityThread", "mInitialApplication", currentActivityThread, app);

ArrayMap mProviderMap = (ArrayMap) RefInvoke.getFieldOjbect("android.app.ActivityThread", currentActivityThread, "mProviderMap");Iterator it = mProviderMap.values().iterator();while (it.hasNext()) {  Object providerClientRecord = it.next();    Object localProvider = RefInvoke.getFieldOjbect("android.app.ActivityThread$ProviderClientRecord", providerClientRecord, "mLocalProvider"); RefInvoke.setFieldOjbect("android.content.ContentProvider", "mContext", localProvider, app);}

app.onCreate();

package org.koi.dexloader;import java.lang.reflect.Field;import java.lang.reflect.Method;public class RefInvoke {    public static  Object invokeStaticMethod(String class_name, String method_name, Class[] pareTyple, Object[] pareVaules){        try {            Class obj_class = Class.forName(class_name);            Method method = obj_class.getMethod(method_name,pareTyple);            return method.invoke(null, pareVaules);        } catch (Exception e) {            e.printStackTrace();        }        return null;    }    public static Object getFieldOjbect(String class_name,Object obj, String filedName){        try {            Class obj_class = Class.forName(class_name);            Field field = obj_class.getDeclaredField(filedName);            field.setAccessible(true);            return field.get(obj);        } catch (Exception e) {            e.printStackTrace();        }        return null;    }    public static void setFieldOjbect(String classname, String filedName, Object obj, Object filedVaule){        try {            Class obj_class = Class.forName(classname);            Field field = obj_class.getDeclaredField(filedName);            field.setAccessible(true);            field.set(obj, filedVaule);        } catch (Exception e) {            e.printStackTrace();        }    }    public static  Object invokeMethod(String class_name, String method_name, Object obj ,Class[] pareTyple, Object[] pareVaules){        try {            Class obj_class = Class.forName(class_name);            Method method = obj_class.getMethod(method_name,pareTyple);            return method.invoke(obj, pareVaules);        } catch (Exception e) {            e.printStackTrace();        }        return null;    }}

<?xml version="1.0" encoding="utf-8"?><manifest xmlns:android="http://schemas.android.com/apk/res/android"    package="org.koi.dexloader">    <application        android:allowBackup="true"        android:icon="@mipmap/ic_launcher"        android:label="@string/app_name"        android:roundIcon="@mipmap/ic_launcher_round"        android:supportsRtl="true"        android:name=".Proxy"        android:theme="@style/Theme.DexLoader">        <meta-data            android:name="APPLICATION_CLASS_NAME"            android:value="org.koi.ctf20200802.APP"/>        <activity android:name="org.koi.ctf20200802.MainActivity">            <intent-filter>                <action android:name="android.intent.action.MAIN" />                <category android:name="android.intent.category.LAUNCHER" />            </intent-filter>        </activity>    </application></manifest>

import java.io.BufferedInputStream;import java.io.BufferedOutputStream;import java.io.FileInputStream;import java.io.FileOutputStream;public class Main {    public static void main(String[] args) {        if (args.length != 2)        {            System.out.println("jar : <source file> <encrypted file>");            return;        }        String sourceFile = args[0];        String encryptedFile = args[1];        try {            FileInputStream fis = new FileInputStream(sourceFile);            BufferedInputStream bis = new BufferedInputStream(fis);            FileOutputStream fos = new FileOutputStream(encryptedFile);            BufferedOutputStream bos = new BufferedOutputStream(fos);            byte[] buffer = new byte[10240];            int acount = 0;            while((acount = bis.read(buffer)) != -1) {                byte[] encryptedData = encrypt(buffer);                bos.write(encryptedData,0, acount);            }            bos.flush();            //关闭的时候只需要关闭最外层的流就行了            bos.close();            bis.close();        } catch (Exception e) {            e.printStackTrace();        }    }    public static byte[] encrypt(byte[] sourceData)    {        for (int i = 0; i < sourceData.length; i++){            sourceData[i] ^= 273;        }        return sourceData;    }}

package org.koi.ctf20210813;import android.app.Application;import android.content.Context;import android.util.ArrayMap;import java.io.File;import java.io.FileOutputStream;import java.io.IOException;import java.io.InputStream;import java.lang.ref.WeakReference;import dalvik.system.DexClassLoader;public class P extends Application {    private final static String encryptedFileName = "flag";    private final static String package_name = "org.koi.ctf20210813";    private final static String activity_thread = "android.app.ActivityThread";    private final static String current_activity_thread = "currentActivityThread";    @Override    protected void attachBaseContext(Context base) {        super.attachBaseContext(base);        try {            File cacheDir = getCacheDir();            if (!cacheDir.exists()){                cacheDir.mkdirs();            }            File outFile = new File(cacheDir, "out.dex");            InputStream is = getAssets().open(encryptedFileName);            FileOutputStream fos = new FileOutputStream(outFile);            byte[] buffer = new byte[1024];            int byteCount;            while ((byteCount = is.read(buffer)) != -1) {                buffer = decrypt(buffer);                fos.write(buffer, 0, byteCount);            }            fos.flush();            is.close();            fos.close();            String file_abs_path = outFile.getAbsolutePath();            Object currentActivityThread = I.invokeStaticMethod(activity_thread, current_activity_thread, new Class[]{}, new Object[]{});            ArrayMap mPackages =  (ArrayMap)I.getFieldOjbect(activity_thread, currentActivityThread, "mPackages");            WeakReference weakReference = (WeakReference) mPackages.get(package_name);            ClassLoader parent = (ClassLoader)I.getFieldOjbect("android.app.LoadedApk", weakReference.get(), "mClassLoader");            DexClassLoader dLoader = null;            File dexOpt = base.getDir("dexOpt", base.MODE_PRIVATE);            dLoader = new DexClassLoader(file_abs_path, dexOpt.getAbsolutePath(), null, parent);            I.setFieldOjbect("android.app.LoadedApk", "mClassLoader", weakReference.get(), dLoader);        } catch (IOException e) {            e.printStackTrace();        }    }    public static byte[] decrypt(byte[] sourceData)    {        for (int i = 0; i < sourceData.length; i++){            sourceData[i] ^= 273;        }        return sourceData;    }    @Override    public void onCreate() {        super.onCreate();    }}

DexClassLoader(dexPath, optimizedDirectory, libraryPath, parent)dexPath：目标类所在的APK或者jar包，/.../xxx.jaroptimizedDirectory：从APK或者jar解压出来的dex文件存放路径libraryPath：native库路径，可以为nullparent：父类装载器，一般为当前类的装载器、

package org.koi.ctf20210813;import java.lang.reflect.Field;import java.lang.reflect.Method;public class I {    public static  Object invokeStaticMethod(String class_name, String method_name, Class[] pareTyple, Object[] pareVaules){        try {            Class obj_class = Class.forName(class_name);            Method method = obj_class.getMethod(method_name,pareTyple);            return method.invoke(null, pareVaules);        } catch (Exception e) {            e.printStackTrace();        }        return null;    }    public static Object getFieldOjbect(String class_name,Object obj, String filedName){        try {            Class obj_class = Class.forName(class_name);            Field field = obj_class.getDeclaredField(filedName);            field.setAccessible(true);            return field.get(obj);        } catch (Exception e) {            e.printStackTrace();        }        return null;    }    public static void setFieldOjbect(String classname, String filedName, Object obj, Object filedVaule){        try {            Class obj_class = Class.forName(classname);            Field field = obj_class.getDeclaredField(filedName);            field.setAccessible(true);            field.set(obj, filedVaule);        } catch (Exception e) {            e.printStackTrace();        }    }    public static  Object invokeMethod(String class_name, String method_name, Object obj ,Class[] pareTyple, Object[] pareVaules){        try {            Class obj_class = Class.forName(class_name);            Method method = obj_class.getMethod(method_name,pareTyple);            return method.invoke(obj, pareVaules);        } catch (Exception e) {            e.printStackTrace();        }        return null;    }}

import android.app.Application;import android.content.Context;public class P extends Application {    static {        System.loadLibrary("ctf20210814");    }    @Override    protected void attachBaseContext(Context base) {        super.attachBaseContext(base);        attachBase(base);    }    @Override    public void onCreate() {        super.onCreate();    }    public static native void attachBase(Context base);}

include <jni.h>#include <string>// only update here#define ENCRYPTED_FILE_NAME         "flag"#define DECRYPTED_FILE_NAME         "ot.dex"#define PACKAGE_NAME                "org.koi.ctf20210814"extern "C"JNIEXPORT void JNICALLJava_org_koi_ctf20210814_P_attachBase(JNIEnv env, jclass clazz, jobject base) {    jclass clz_File = env->FindClass("java/io/File");    jclass clz_Context = env->FindClass("android/content/Context");    jclass clz_AssetManager = env->FindClass("android/content/res/AssetManager");    jclass clz_InputStream = env->FindClass("java/io/InputStream");    jclass clz_FileOutputStream = env->FindClass("java/io/FileOutputStream");    jclass clz_ActivityThread = env->FindClass("android/app/ActivityThread");    jclass clz_ArrayMap = env->FindClass("android/util/ArrayMap");    jclass clz_WeakReference = env->FindClass("java/lang/ref/WeakReference");    jclass clz_LoadedApk = env->FindClass("android/app/LoadedApk");    jclass clz_DexClassLoader = env->FindClass("dalvik/system/DexClassLoader");    jmethodID mid_File_init = env->GetMethodID(clz_File, "<init>",                                               "(Ljava/io/File;Ljava/lang/String;)V");    jmethodID mid_FileOutputStream_init = env->GetMethodID(clz_FileOutputStream, "<init>",                                                           "(Ljava/io/File;)V");    jmethodID mid_DexClassLoader_init = env->GetMethodID(clz_DexClassLoader, "<init>",                                                         "(Ljava/lang/String;Ljava/lang/String;Ljava/lang/String;Ljava/lang/ClassLoader;)V");    jmethodID mid_Context_getCacheDir = env->GetMethodID(clz_Context, "getCacheDir",                                                         "()Ljava/io/File;");    jmethodID mid_Context_getAssets = env->GetMethodID(clz_Context, "getAssets",                                                       "()Landroid/content/res/AssetManager;");    jmethodID mid_Context_getDir = env->GetMethodID(clz_Context, "getDir",                                                    "(Ljava/lang/String;I)Ljava/io/File;");    jmethodID mid_AssetManager_open = env->GetMethodID(clz_AssetManager, "open",                                                       "(Ljava/lang/String;)Ljava/io/InputStream;");    jmethodID mid_File_exists = env->GetMethodID(clz_File, "exists", "()Z");    jmethodID mid_File_mkdirs = env->GetMethodID(clz_File, "mkdirs", "()Z");    jmethodID mid_File_getAbsolutePath = env->GetMethodID(clz_File, "getAbsolutePath",                                                          "()Ljava/lang/String;");    jmethodID mid_InputStream_read = env->GetMethodID(clz_InputStream, "read", "([B)I");    jmethodID mid_InputStream_close = env->GetMethodID(clz_InputStream, "close", "()V");    jmethodID mid_InputStream_available = env->GetMethodID(clz_InputStream, "available", "()I");    jmethodID mid_FileOutputStream_write = env->GetMethodID(clz_FileOutputStream, "write",                                                            "([BII)V");    jmethodID mid_FileOutputStream_flush = env->GetMethodID(clz_FileOutputStream, "flush", "()V");    jmethodID mid_FileOutputStream_close = env->GetMethodID(clz_FileOutputStream, "close", "()V");    jmethodID mid_ActivityThread_currentActivityThread = env->GetStaticMethodID(clz_ActivityThread,                                                                                "currentActivityThread",                                                                                "()Landroid/app/ActivityThread;");    jmethodID mid_ArrayMap_get = env->GetMethodID(clz_ArrayMap, "get",                                                  "(Ljava/lang/Object;)Ljava/lang/Object;");    jmethodID mid_WeakReference_get = env->GetMethodID(clz_WeakReference, "get",                                                       "()Ljava/lang/Object;");    jfieldID fid_ActivityThread_mPackages = env->GetFieldID(clz_ActivityThread, "mPackages",                                                            "Landroid/util/ArrayMap;");    jfieldID fid_LoadedApk_mClassLoader = env->GetFieldID(clz_LoadedApk, "mClassLoader",                                                          "Ljava/lang/ClassLoader;");    try {        jobject cacheDir = env->CallObjectMethod(base, mid_Context_getCacheDir);        if (!env->CallBooleanMethod(cacheDir, mid_File_exists)) {            env->CallBooleanMethod(cacheDir, mid_File_mkdirs);        }        jstring str = env->NewStringUTF(DECRYPTED_FILE_NAME);        jobject outFile = env->NewObject(clz_File, mid_File_init, cacheDir, str);        jobject AssetManager = env->CallObjectMethod(base, mid_Context_getAssets);        jstring out_file_name = env->NewStringUTF(ENCRYPTED_FILE_NAME);        jobject is = env->CallObjectMethod(AssetManager, mid_AssetManager_open, out_file_name);        jobject fos = env->NewObject(clz_FileOutputStream, mid_FileOutputStream_init, outFile);        jint file_size = env->CallIntMethod(is, mid_InputStream_available);        jbyteArray buffer = env->NewByteArray(file_size);        env->CallIntMethod(is, mid_InputStream_read, buffer); //read        jbyte p_bt_ary = (jbyte*)env->GetByteArrayElements(buffer, 0);        // here you can add decryption function.        for (jint i = 0; i < file_size; ++i) {            p_bt_ary[i] ^= 273;        }        env->SetByteArrayRegion(buffer, 0, file_size, p_bt_ary);        env->CallVoidMethod(fos, mid_FileOutputStream_write, buffer, 0, file_size);        env->DeleteLocalRef(buffer);        env->CallVoidMethod(fos, mid_FileOutputStream_flush);        env->CallVoidMethod(is, mid_InputStream_close);        env->CallVoidMethod(fos, mid_FileOutputStream_close);        jstring file_abs_path = (jstring) env->CallObjectMethod(outFile, mid_File_getAbsolutePath);        jobject currentActivityThread = env->CallStaticObjectMethod(clz_ActivityThread,                                                                    mid_ActivityThread_currentActivityThread);        jobject mPackages = env->GetObjectField(currentActivityThread,                                                fid_ActivityThread_mPackages);        jstring package_name = env->NewStringUTF(PACKAGE_NAME);        jobject weakReference = env->CallObjectMethod(mPackages, mid_ArrayMap_get, package_name);        jobject loadedApk = env->CallObjectMethod(weakReference, mid_WeakReference_get);        jobject parent = env->GetObjectField(loadedApk, fid_LoadedApk_mClassLoader);        jstring jstr_dexOpt = env->NewStringUTF("dexOpt");        jobject dexOpt = env->CallObjectMethod(base, mid_Context_getDir, jstr_dexOpt, 0);        jstring dexOpt_abs_path = (jstring) env->CallObjectMethod(dexOpt, mid_File_getAbsolutePath);        jstring str_null = env->NewStringUTF("");        jobject dLoader = env->NewObject(clz_DexClassLoader, mid_DexClassLoader_init, file_abs_path,                                         dexOpt_abs_path, str_null, parent);        env->SetObjectField(loadedApk, fid_LoadedApk_mClassLoader, dLoader);    } catch (...) {}}

> 这个例子中，进行加密解密的操作，可以根据实际情况进行修改。
>
> JNI中有部分代码可以提取到`JNI_OnLoad`或者`initarray`中进行处理。
>
> JNI中的所有字符串可以进行一些处理，不直接暴露在源码中。

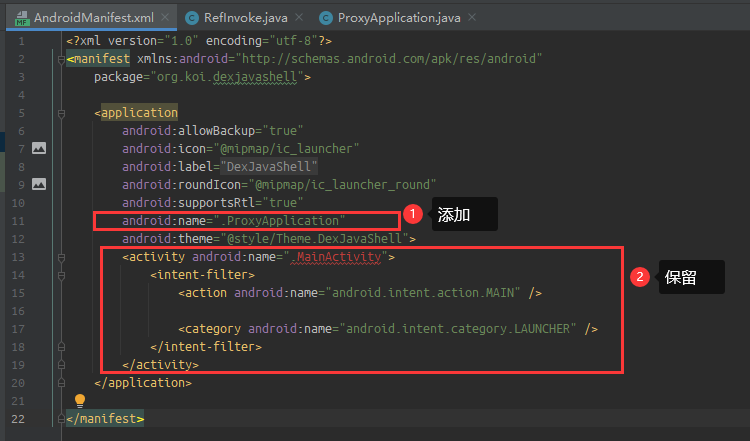

#### `AndroidManifest.xml`

按照上面的方法进行修改。

#### 注意

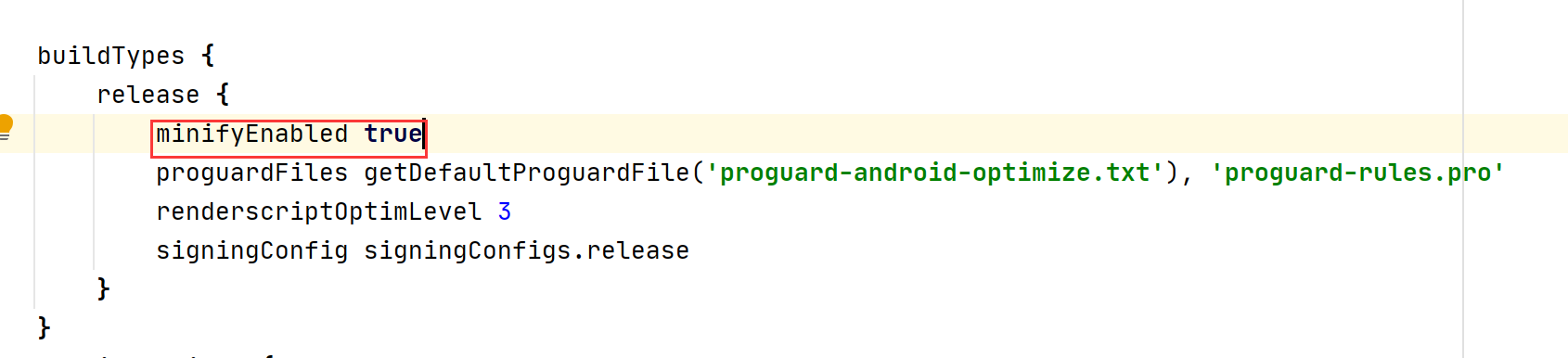

- 关闭`minifyEnabled`。

# ELF文件壳

在学习这部分内容之前需要**熟悉ELF的文件格式。**

## ELF节加密

### 主要思想

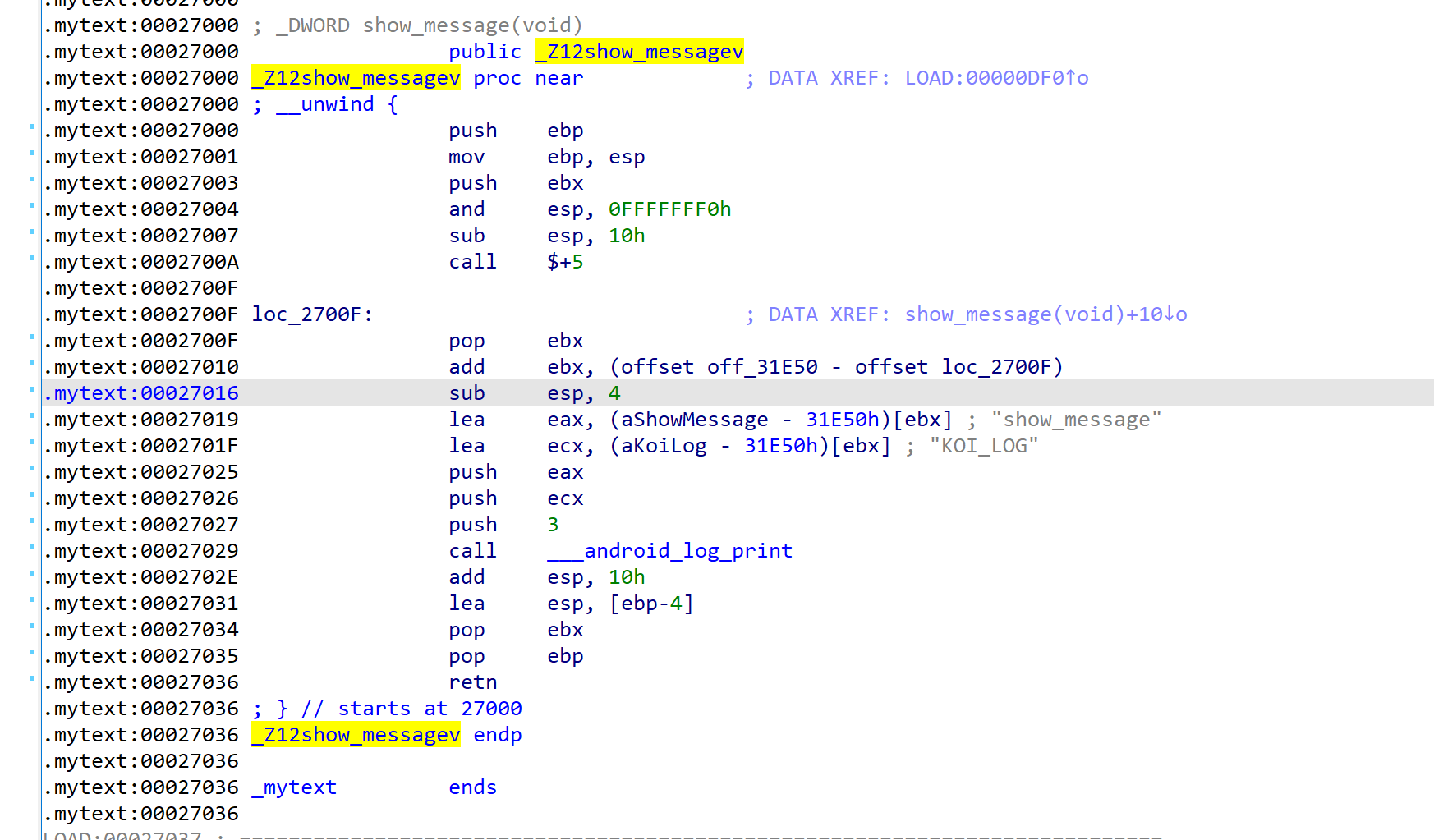

编写代码时：自定义一个代码节(.mytext)(以后要进行加密，现在没有处理)，然后一个初始化函数(.init_array)，在这个函数中找到elf文件加载到内存中的地址，然后根据elf文件格式找到`.mytext`节，对这个节的内容进行解密。

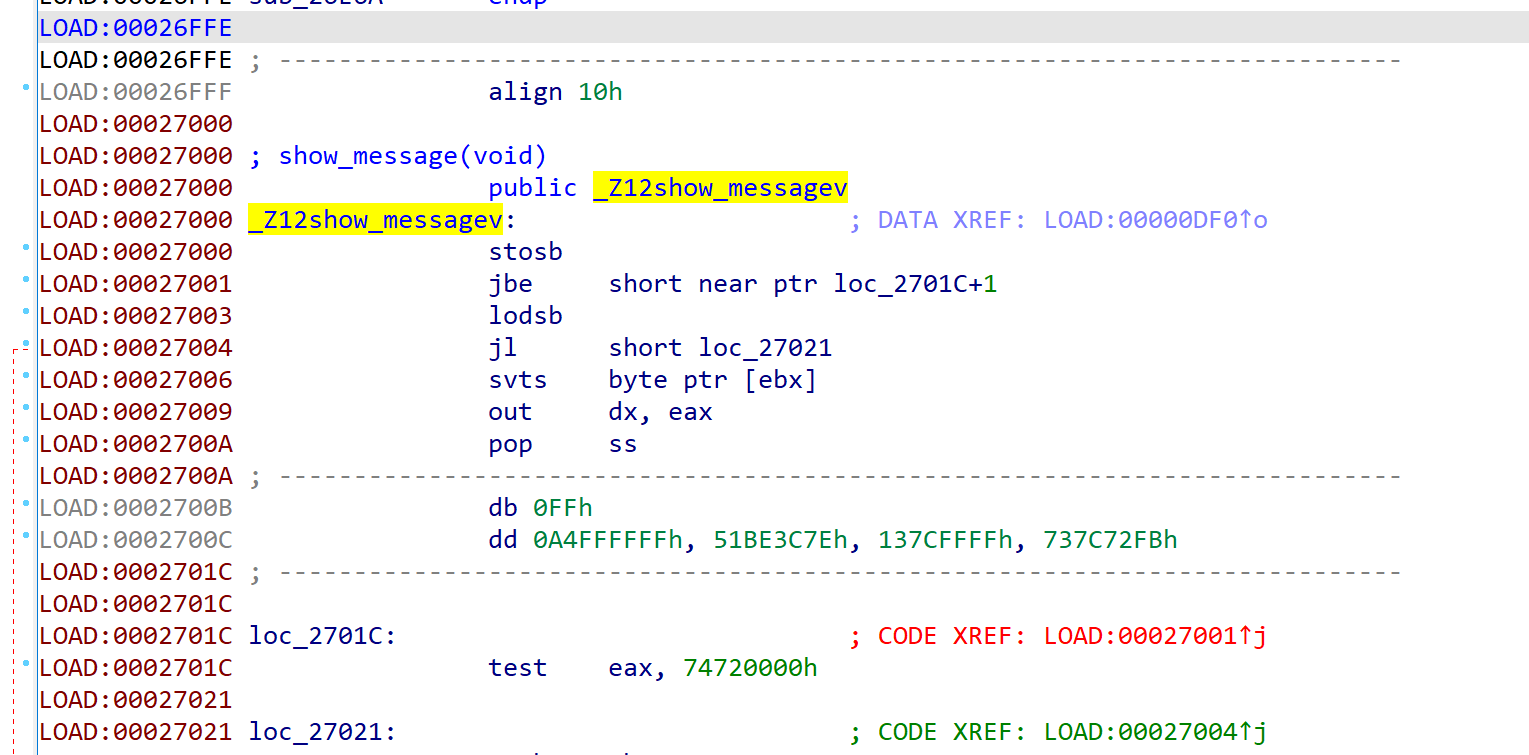

加密：在原始apk编译好后，利用自己写的代码，把目标lib中的`.mytext`进行加密。

最后进行签名。

### 代码

创建一个ndk项目。编写一段代码放入自定义的（代码）节`.koitext`中。

用` __attribute__((section(".koitext")))`来指定节。

```c++
#include <jni.h>#include <string>#define SECTION_NAME ".koitext"#define JNIHIDDEN __attribute__((visibility("hidden")))// save the result.int fw[40] = {13, 18, 14, 64, 11, 65, 16, 14, 20, 14, 11, 14, 18,              61, 12, 13, 60, 60, 20, 62, 16, 61, 61, 64, 63, 63, 15, 18, 12, 63, 14, 64,              13, 18, 14, 64, 11, 65, 16, 14};int fs[38];void str2ints (const char* fw, int* results);char* jstring2charAry(JNIEnv* env, jstring jstr);extern "C"JNIEXPORT __attribute__((section(SECTION_NAME))) jboolean JNICALLJava_org_koi_ctf20210821_MainActivity_checkflag(JNIEnv *env, jobject thiz, jstring flag) {    char fg[]="flag{helloboy_ewri346hHeewr34dr}";    str2ints(jstring2charAry(env, flag), fs);    for (int i = 0; i < strlen(fg); ++i) {        if(fw[i] != fs[i] )            return false;    }    return true;}__attribute__((section(SECTION_NAME))) void str2ints (const char* fw, int* results){    for (int mX4WyHKgmwSPY1V = 0; mX4WyHKgmwSPY1V < 32; mX4WyHKgmwSPY1V++){results[mX4WyHKgmwSPY1V] = fw[mX4WyHKgmwSPY1V];}    for (int _ZKdmdmEjiQ_Ouw = 0; _ZKdmdmEjiQ_Ouw < 32; _ZKdmdmEjiQ_Ouw++){results[_ZKdmdmEjiQ_Ouw] = results[_ZKdmdmEjiQ_Ouw] + 3;}    for (int zbTK_I56tB0GevN = 0; zbTK_I56tB0GevN < 32; zbTK_I56tB0GevN++){results[zbTK_I56tB0GevN] = results[zbTK_I56tB0GevN] + 10;}    for (int DfeXBWD6dcNPXKo = 0; DfeXBWD6dcNPXKo < 32; DfeXBWD6dcNPXKo++){results[DfeXBWD6dcNPXKo] = results[DfeXBWD6dcNPXKo] - 58;}    for (int jqJhXnPQwPYi2G6 = 0; jqJhXnPQwPYi2G6 < 32; jqJhXnPQwPYi2G6++){results[jqJhXnPQwPYi2G6] = results[jqJhXnPQwPYi2G6] - 66;}    for (int xA7fCVlKruHZC4Y = 0; xA7fCVlKruHZC4Y < 32; xA7fCVlKruHZC4Y++){results[xA7fCVlKruHZC4Y] = results[xA7fCVlKruHZC4Y] + 66;}    for (int sGVbaq_poAxfJ3O = 0; sGVbaq_poAxfJ3O < 32; sGVbaq_poAxfJ3O++){results[sGVbaq_poAxfJ3O] = results[sGVbaq_poAxfJ3O] + 8;}    for (int EIGWrEGI6UaAjH8 = 0; EIGWrEGI6UaAjH8 < 32; EIGWrEGI6UaAjH8++){results[EIGWrEGI6UaAjH8] = results[EIGWrEGI6UaAjH8] + 49;}    for (int nHJAUmNRoQs5M9k = 0; nHJAUmNRoQs5M9k < 32; nHJAUmNRoQs5M9k++){results[nHJAUmNRoQs5M9k] = results[nHJAUmNRoQs5M9k] + 11;}    for (int NzhuxVIobubHcRM = 0; NzhuxVIobubHcRM < 32; NzhuxVIobubHcRM++){results[NzhuxVIobubHcRM] = results[NzhuxVIobubHcRM] - 64;}    for (int Wa46hlZr0UFGqFu = 0; Wa46hlZr0UFGqFu < 32; Wa46hlZr0UFGqFu++){results[Wa46hlZr0UFGqFu] = results[Wa46hlZr0UFGqFu] + 4;}}JNIHIDDEN __attribute__((section(SECTION_NAME))) char* jstring2charAry(JNIEnv* env, jstring jstr){    jclass jcls_String = env->FindClass("java/lang/String");    jmethodID jmid_toCharArray = env->GetMethodID(jcls_String, "toCharArray", "()[C");    jmethodID jmid_length = env->GetMethodID(jcls_String, "length", "()I");    jcharArray charArray = (jcharArray)env->CallObjectMethod(jstr, jmid_toCharArray);    jint len = env->CallIntMethod(jstr, jmid_length);    char* pString = new char[len];    pString[len] = 0;    jboolean fals = false;    for (int i = 0; i < len; ++i) {        pString[i] = env->GetCharArrayElements(charArray, &fals)[i];    }    return pString;}

include<sys/types.h>#include<unistd.h>#include <sys/mman.h>#include <elf.h>

```c
void init_native_Add() __attribute__((constructor));unsigned long getLibAddr();// loaded so file#define SO_LIB_FILE_NAME "libctf20210821.so"void init_native_Add(){    char name[15];    unsigned int nblock;    unsigned int nsize;    unsigned long base;    unsigned long text_addr;    unsigned int i;    Elf32_Ehdr *ehdr;    Elf32_Shdr *shdr;    base=getLibAddr(); //在/proc/id/maps文件中找到我们的so文件，活动so文件地址    ehdr=(Elf32_Ehdr *)base;    text_addr=ehdr->e_shoff+base;//加密节的地址    nblock=ehdr->e_entry >>16;//加密节的大小    nsize=ehdr->e_entry&0xffff;//加密节的大小    printf("nblock = %d\n", nblock);    //修改内存权限    if(mprotect((void *) (text_addr / PAGE_SIZE * PAGE_SIZE), 4096 * nsize, PROT_READ | PROT_EXEC | PROT_WRITE) != 0){        puts("mem privilege change failed");    }    //进行解密，是针对加密算法的    for(i=0;i<nblock;i++){        char *addr=(char*)(text_addr+i);        *addr=~(*addr);    }    if(mprotect((void *) (text_addr / PAGE_SIZE * PAGE_SIZE), 4096 * nsize, PROT_READ | PROT_EXEC) != 0){        puts("mem privilege change failed");    }    puts("Decrypt success");}//获取到SO文件加载到内存中的起始地址，只有找到起始地址才能够进行解密；unsigned long getLibAddr(){    unsigned long ret=0;    char name[] = SO_LIB_FILE_NAME;    char buf[4096];    char *temp;    int pid;    FILE *fp;    pid=getpid();    sprintf(buf,"/proc/%d/maps",pid);  //这个文件中保存了进程映射的模块信息  cap /proc/id/maps  查看    fp=fopen(buf,"r");    if(fp==NULL){        puts("open failed");        goto _error;    }    while (fgets(buf,sizeof(buf),fp)){        if(strstr(buf,name)){            temp = strtok(buf, "-");  //分割字符串，返回 - 之前的字符            ret = strtoul(temp, NULL, 16);  //获取地址            break;        }    }    _error:    fclose(fp);    return ret;}

#include <stdio.h>#include <cstdint>#include <string.h>typedef uint32_t Elf32_Addr; // Program addresstypedef uint32_t Elf32_Off;  // File offsettypedef uint16_t Elf32_Half;typedef uint32_t Elf32_Word;typedef int32_t  Elf32_Sword;enum {    EI_MAG0 = 0,                // File identification index.    EI_MAG1 = 1,                // File identification index.    EI_MAG2 = 2,                // File identification index.    EI_MAG3 = 3,                // File identification index.    EI_CLASS = 4,               // File class.    EI_DATA = 5,                // Data encoding.    EI_VERSION = 6,             // File version.    EI_OSABI = 7,               // OS/ABI identification.    EI_ABIVERSION = 8,          // ABI version.    EI_PAD = 9,                 // Start of padding bytes.    EI_NIDENT = 16              // Number of bytes in e_ident.};struct Elf32_Ehdr {    unsigned char e_ident[EI_NIDENT];   // ELF Identification bytes    Elf32_Half    e_type;               // Type of file (see ET_* below)    Elf32_Half    e_machine;            // Required architecture for this file (see EM_*)    Elf32_Word    e_version;            // Must be equal to 1    Elf32_Addr    e_entry;              // Address to jump to in order to start program    Elf32_Off     e_phoff;              // Program header table's file offset, in bytes    Elf32_Off     e_shoff;              // Section header table's file offset, in bytes    Elf32_Word    e_flags;              // Processor-specific flags    Elf32_Half    e_ehsize;             // Size of ELF header, in bytes    Elf32_Half    e_phentsize;          // Size of an entry in the program header table    Elf32_Half    e_phnum;              // Number of entries in the program header table    Elf32_Half    e_shentsize;          // Size of an entry in the section header table    Elf32_Half    e_shnum;              // Number of entries in the section header table    Elf32_Half    e_shstrndx;           // Sect hdr table index of sect name string table    unsigned char getFileClass() const { return e_ident[EI_CLASS]; }    unsigned char getDataEncoding() const { return e_ident[EI_DATA]; }};// Program header for ELF32.struct Elf32_Phdr {    Elf32_Word p_type;   // Type of segment    Elf32_Off  p_offset; // File offset where segment is located, in bytes    Elf32_Addr p_vaddr;  // Virtual address of beginning of segment    Elf32_Addr p_paddr;  // Physical address of beginning of segment (OS-specific)    Elf32_Word p_filesz; // Num. of bytes in file image of segment (may be zero)    Elf32_Word p_memsz;  // Num. of bytes in mem image of segment (may be zero)    Elf32_Word p_flags;  // Segment flags    Elf32_Word p_align;  // Segment alignment constraint};// Section header.struct Elf32_Shdr {    Elf32_Word sh_name;      // Section name (index into string table)    Elf32_Word sh_type;      // Section type (SHT_*)    Elf32_Word sh_flags;     // Section flags (SHF_*)    Elf32_Addr sh_addr;      // Address where section is to be loaded    Elf32_Off  sh_offset;    // File offset of section data, in bytes    Elf32_Word sh_size;      // Size of section, in bytes    Elf32_Word sh_link;      // Section type-specific header table index link    Elf32_Word sh_info;      // Section type-specific extra information    Elf32_Word sh_addralign; // Section address alignment    Elf32_Word sh_entsize;   // Size of records contained within the section};long get_file_size(FILE* pf);int main(){    char elf_name[64] = "C:\\Users\\koi\\Desktop\\libnative-lib.so";    char want2encrypt_section_name[] = ".mytext";    FILE* pf_elf = fopen(elf_name, "rb");    long sz_file = get_file_size(pf_elf);    char* file_buf = new char[sz_file];    fread(file_buf, sz_file, 1, pf_elf);    Elf32_Ehdr* ehdr = (Elf32_Ehdr*)(file_buf);    // 字符串节头表的位置    Elf32_Shdr* shdrstr = (Elf32_Shdr*)(file_buf + ehdr->e_shoff + sizeof(Elf32_Shdr) * ehdr->e_shstrndx);    char* sh_str = (char*)(file_buf + shdrstr->sh_offset);//偏移到字符串表    Elf32_Shdr* shdr = (Elf32_Shdr*)(file_buf + ehdr->e_shoff);    int encrypt_foffset = 0;    int encrypt_size = 0;    for (int i = 0; i < ehdr->e_shnum; i++, shdr++)     {        //根据字符串表的名称比较        if (strcmp(sh_str + shdr->sh_name, want2encrypt_section_name) == 0)        {            encrypt_foffset = shdr->sh_offset;            encrypt_size = shdr->sh_size;            break;        }    }    char* content = (char*)(file_buf + encrypt_foffset);    int block_size = 16;    int nblock = encrypt_size / block_size;    int nsize = encrypt_foffset / 4096 + (encrypt_foffset % 4096 == 0 ? 0 : 1);    printf("base = 0x%x, length = 0x%x\n", encrypt_foffset, encrypt_size);    printf("nblock = %d, nsize = %d\n", nblock, nsize);    //将节的地址和大小写入    ehdr->e_entry = (encrypt_size << 16) + nsize;    ehdr->e_shoff = encrypt_foffset; //节的地址    //加密    for (int i = 0; i < encrypt_size; i++) {        content[i] = ~content[i];    }    strcat(elf_name, "_m");    FILE* m_elf_file = fopen(elf_name, "wb");    fwrite(file_buf, sz_file, 1, m_elf_file);    return 0;}long get_file_size(FILE* pf){    long cur_pos = ftell(pf);    fseek(pf, 0, SEEK_END);    long sz_file = ftell(pf);    fseek(pf, cur_pos, SEEK_SET);    return sz_file;}
